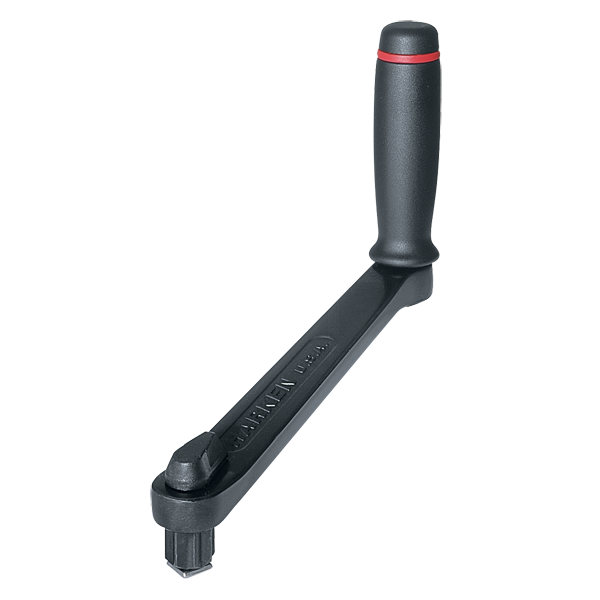

This optional 203 mm (8”) handle is shorter than the standard handle included in the LokHead winch kit. It provides easier, faster cranking speed, but less power.

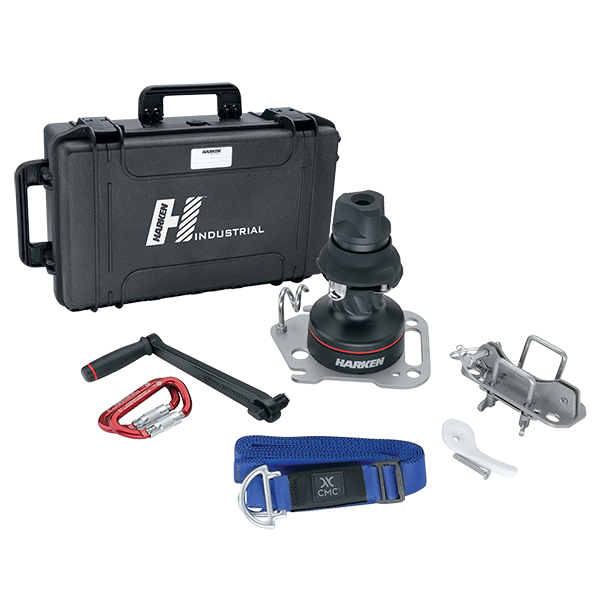

The innovative LokHead Winch Fire/Rescue Kit meets the certification requirements of the National Fire Protection Association Standard on Life Safety Rope and Equipment for Emergency Services NFPA 2500 (1983), 2022 Edition “T” . The winch is a portable or fix-mounted load-lifting, personal-hoisting winch used with an unlimited length of fiber rope. The captive head allows the winch to be used safely, and keeps the rope from accidentally releasing. Perfect for fixed or temporary applications and rescue. Harken Safety & Rescue offers the LokHead and its accessories fully boxed in a heavy-duty storage case that allows safe transport and rapid deployment. The kit includes the LokHead winch with reversible plate, waterproof carrying case, winch handle, tripod adapter with counter plate, control lever, CMC Variable Anchor strap, and two CMC ProSeries carabiners. The strap and carabiners also meet NFPA standards. Spare parts available from any Harken Safety & Rescue dealer. The winch’s simple construction requires no lubrication and can be flushed clean with fresh water.

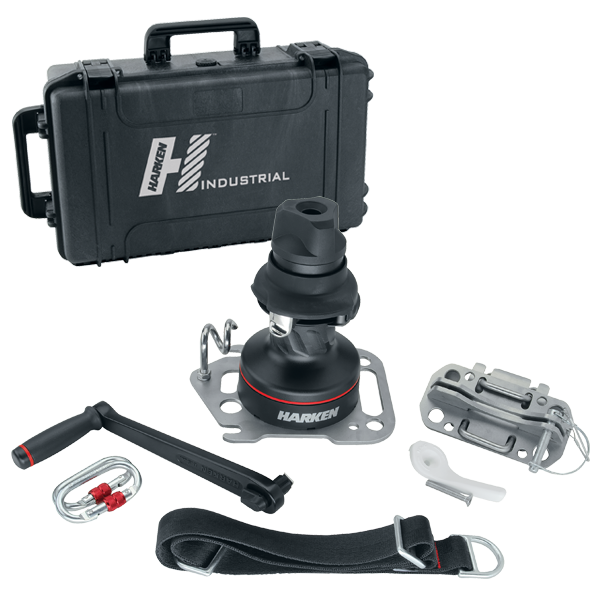

The innovative LokHead winch is a portable or fix-mounted load-lifting, personnel-hoisting winch used with an unlimited length of fiber rope. The captive head allows the winch to be used safely, and keeps the rope from accidentally releasing. Perfect for fixed or temporary applications and rescue. Harken Safety & Rescue offers the LokHead and its accessories fully boxed in a heavy-duty storage case that allows safe transport and rapid deployment. The kit includes the LokHead winch with reversible plate, winch handle, universal tripod adapter, control lever, 2 carabiners, waterproof case and anchor strap with connectors to offer a variety of mounting options: clamped to tripods, rigged to ropes/strops, or anchored direct to structures. Spare parts available from any Harken Safety & Rescue dealer. The simple construction requires no lubrication and can be flushed clean with fresh water.

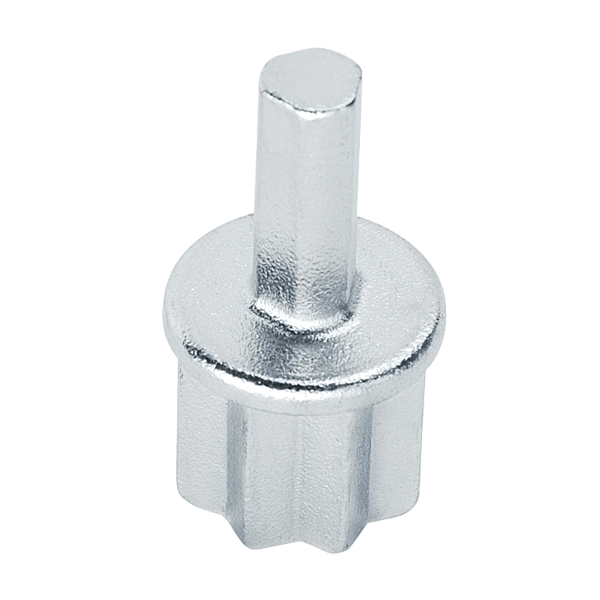

This Power Tool Adapter enables the use of a drill to drive Harken’s LokHead Winch (INLH500KIT.US) and Traction Winch 500 (INTW500). It fits all standard drill chucks and can be used with drill speeds up to 60rpm. For drill speeds up to 300rpm, the Harken Protect Connect (INHDTOOL) must be used with the Power Tool Adapter. This adapter and a drill may be used with the NFPA-certified LokHead Winch Fire/Rescue Kit for human suspension. Likewise, using this adapter, a drill, the Traction Winch 500 and an NFPA-certified descent control device such as the Clutch as a progress capture device will satisfy the requirements of NFPA. Please note that use of a drill and this adapter to move personnel is not compliant with EN13157 which governs only hand-powered machines.

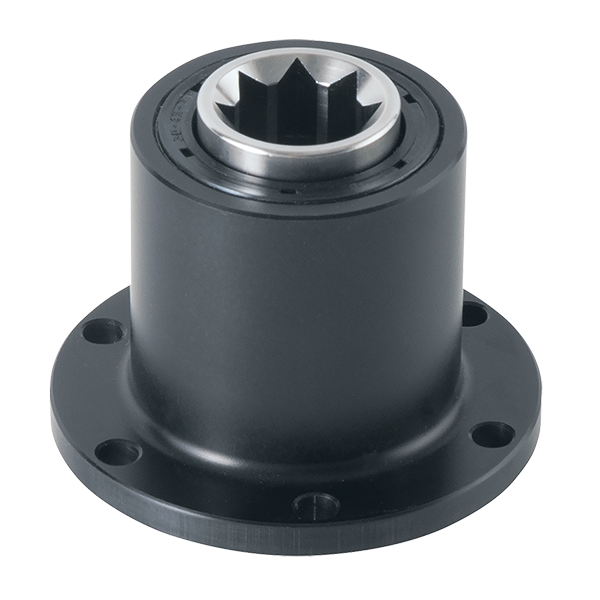

This special tool helps stabilize the LokHead winch when it is used for long duty cycles or when the winch is under intense loads. The Protect-Connect can be used with a LokHead winch to safely operate it with a power drill at up to 300 RPM when lifting goods. Not EN13157 compliant.

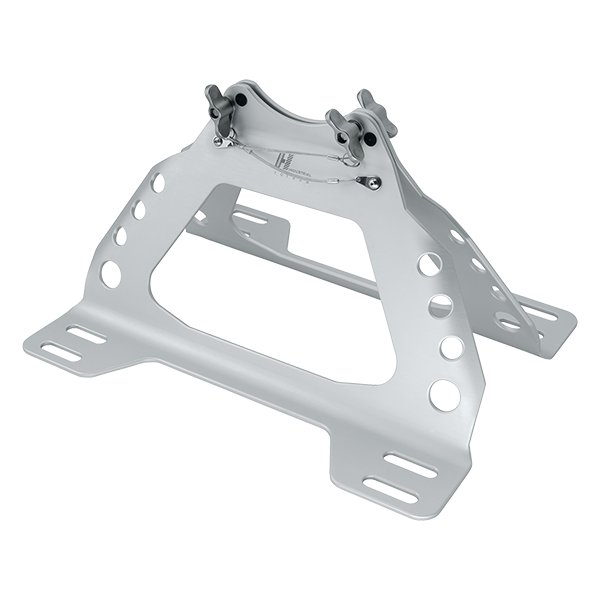

When used in combination with the LokHead winch kit the TelluMount provides a myriad of rigging solutions, either on the ground or other flat surface, or mounted to a wall. The TelluMount is made of durable aluminum and features holes in a variety of sizes enabling it to be mounted in many ways. It’s a perfect tool for confined space operations and other rope access operations.

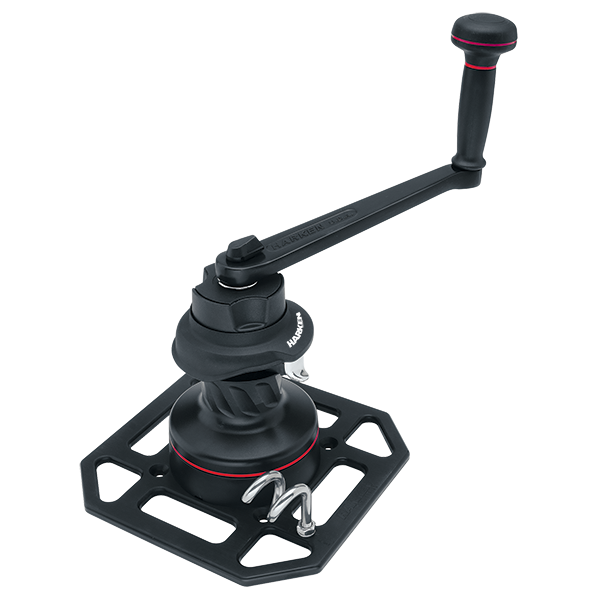

TopCrank Lokhead Rigging Winch 500 is the ultimate solution for your lifting needs. This lightweight and portable winch is CE certified and comes mounted to a robust adapter/rigging plate, ensuring durability and reliability. Designed for use in complex rigging scenarios, this winch boasts two speeds, allowing for precise control over your operations. Whether you're faced with challenging or remote environments, the TopCrank Lokhead Rigging Winch 500 offers multiple mounting and rigging options, ensuring versatility and adaptability. Safety is paramount, and that's why we've equipped this winch with the LH breaking system (self-tailing), providing complete protection against free fall of materials or accidental release. You can trust this winch to deliver the performance you need without compromising on safety. Crafted from Radial Winch 40.2STA with custom Lokhead Self-tailing and featuring aluminum jaws, the TopCrank Lokhead Rigging Winch 500 is built to handle tough tasks with ease. Additionally, the anodized aluminum mounting plate adds extra strength and corrosion resistance. Take your rigging operations to the next level with the TopCrank Lokhead Rigging Winch 500. Whether you're working on a construction site, or handling other heavy-duty tasks, this winch is your reliable partner. Invest in quality and efficiency with TopCrank today!
